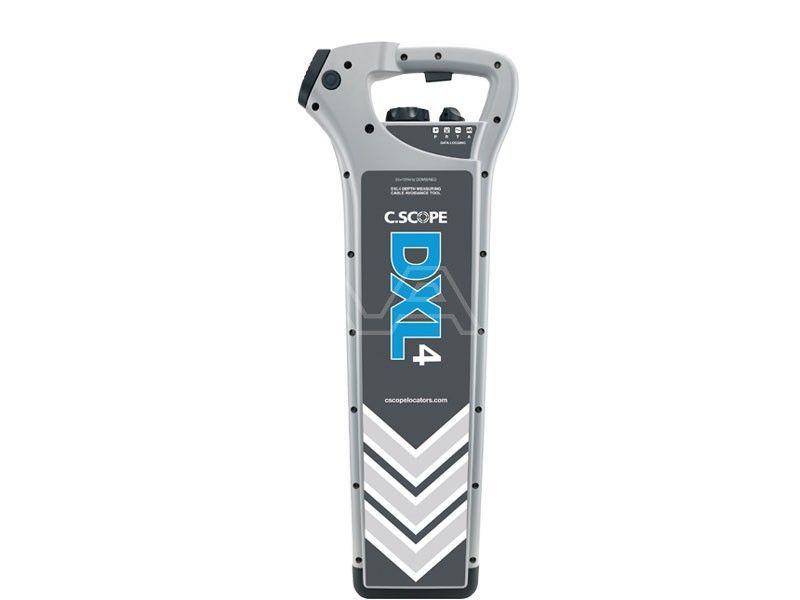

C.Scope – DXL4-D Cable Detector
Accurate localization of cables and pipes
The XL4 series of cable detection equipment succeeds the well-known XL2 series. In addition to the introduction of innovative functions, the already widely appreciated features have been improved to detect even the most difficult-to-trace cables and pipes. And all this while operation has remained simple and minimal training is required. Completely new is the C.Scope DXL4-D Cable Detector with dual frequency, depth measurement, and data logging. Search operations are stored in the internal memory for twelve months, allowing you to track which Cable Detector was used where, when, and in which search mode (there is also a version without depth measurement: the CXL4-D). Thanks to the digital electronics, no annual calibration is required, resulting in cost savings and allowing the equipment to be used without interruption. The DXL4-D has an IP65 protection rating, can be used as a standalone unit or optionally in combination with the SGA4 or SGV4 Signal Generator, and comes with a warranty period of no less than three years!
Features of the cable detector
four search modes
data logging
Automatic Daily Self Test; the results of this self-test are stored, after which a Product Validation Certificate can be printed if desired
AlarmZone function; warning for exceptionally shallow cables and pipes
PeakHold; extended display of the maximum meter deflection
SwingSensor; an audible signal indicates that an excessive swing movement is being made, which can lead to inaccurate positioning
depth measurement
distinctive sound tone per search mode
the illuminated LCD screen displays the search mode, signal strength, and battery condition
removable loudspeaker for use in noisy environments
maximum detection depth of 3 m
three-year warranty
batteries included (for continuous use of approx. 40 hours)
little prior knowledge required; on-site training can be offered as an option
lightweight and user-friendly
IP65; Dust- and spray-waterproof
Caliph-free
The four search modes are:
Power – for locating live cables
Radio – for detecting radio signals often already present on cables and metal pipes
Generator – when using the Cable Detector in combination with the SGA4 or SGV4 Signal Generator, allowing even more cables and pipes to be located (for more info; see SGA4 / SGV4)
AllScan – for detecting all present signals
