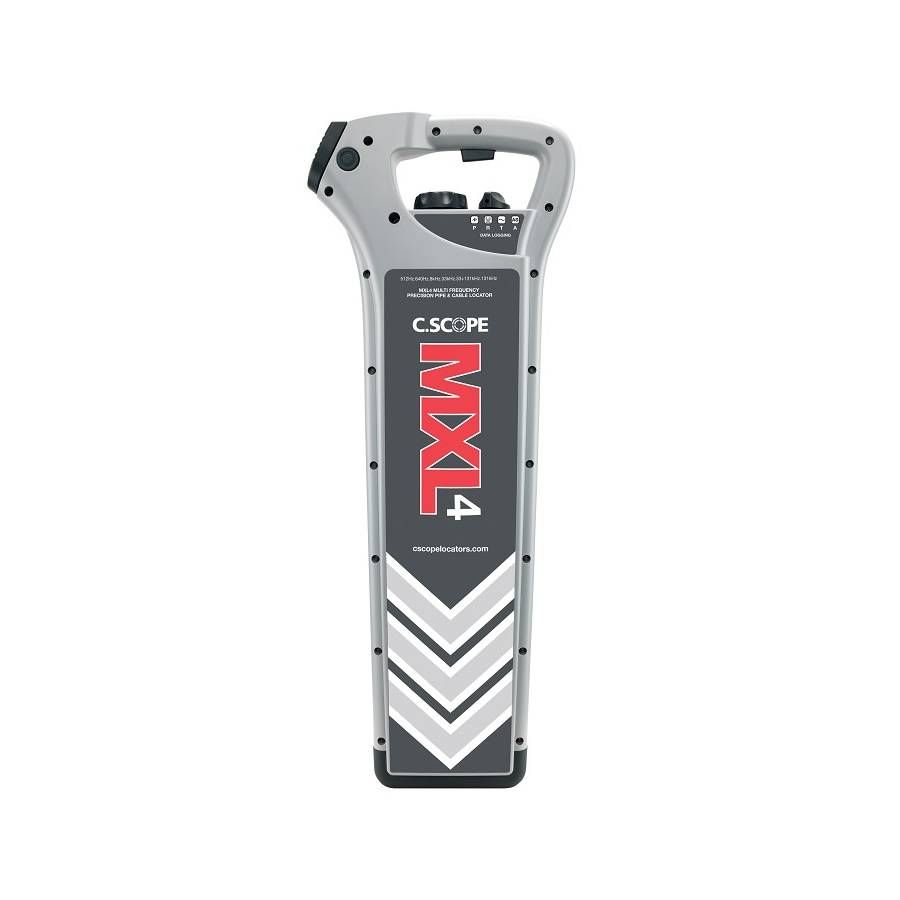

C.Scope – MXL4-D Cable Detector
Accurately locate cables and pipes
The XL4 series of Cable Detection equipment follows the well-known XL2 series. In addition to the introduction of innovative functions, the already widely appreciated features have been improved to be able to detect even the most difficult to trace cables and pipes. And all this while remaining simple to operate and requiring minimal training. Completely new is the C.Scope MXL4-D multi-frequency Cable Detector with depth measurement and data logging. With this, the searches are stored in the internal memory for twelve months and it is possible to trace which Cable Detector was used where, when and in which search mode. With the six different output frequencies, including the combined frequency - 33+131kHz, a wide variety of cables and pipes can be detected quickly and accurately by means of direct connection, by the simple induction method via the ground or by the winding method. With its optimized Locator Sensitivity and Noise Rejection, the MXL4-D functions even at very high levels of background interference, allowing even the weakest signals to be detected (there is also a version with GPS and Bluetooth function; the MXL4-DBG). The digital electronics mean that no annual calibration is required, which saves costs and also allows the equipment to be used without interruption. The MXL4-D has an IP65 protection degree, can be used as a standalone unit or possibly in combination with the MXT4 Signal Generator and has a warranty period of no less than three years!
Other features
four search modes, namely:Power – for locating live cablesRadio – for detecting radio signals that are often already present on cables and metal pipesGenerator – when using the Cable Detector in combination with the MXT4 Signal Generator, even more cables and pipes can be traced (for more information; see MXT4)AllScan – for detecting all present signalssix frequencies; 512Hz, 640Hz, 8kHz, 33kHz, 131kHz and combined 33+131kHzdata loggingsignal current measurementAutomatic Daily Self Test; the results of this self test are stored, after which a Product Validation Certificate can be printed out if necessaryAlarmZone function; warning for exceptionally shallow cables and pipesPeakHold; longer display of the maximum meter readingSwingSensor; an audible signal indicates that too large a swinging movement is being made, which can lead to inaccurate positioning depth measurement distinctive sound tone per search mode the illuminated LCD screen displays the search mode, signal strength and battery condition removable speaker for use in noisy environments maximum detection depth of 3 m light in weight and easy to use batteries included (for continuous use of approx. 40 hours) little prior knowledge required; on-site training can be offered as an option IP65; dust and splash proof three-year warranty calibration-free
